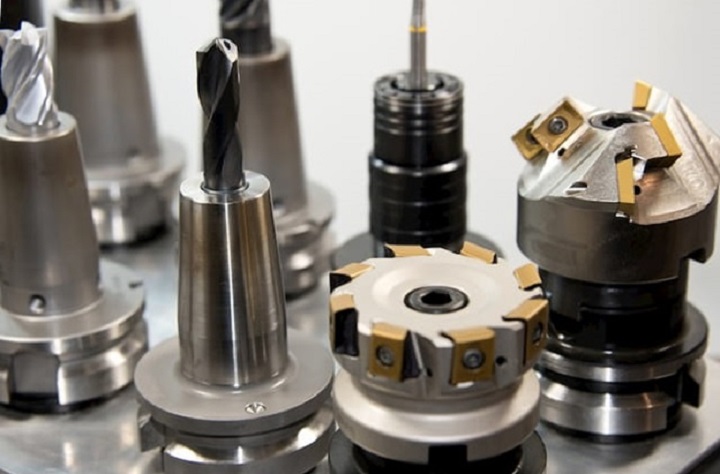

Among the various cutters used in CNC milling, the Roughing End Mill Cutter stands out for its ability to quickly remove significant amounts of material. Its wavy-toothed design efficiently breaks down materials into small chips, preventing machine overload and enhancing productivity.
Another crucial tool is the Slab Mill Cutter, which excels in both horizontal and vertical milling machines. Primarily used for large surface material removal, these cutters are made from high-speed steel to withstand extensive operations. Their lightweight design ensures quick and uniform material removal without sacrificing precision.
The End Mill Cutter is indispensable, featuring cutting edges on both sides and the bottom. This design allows it to cut in all directions. Available in center and non-center types, the center type can drill downward like a drill bit, while the non-center type provides greater stability during side milling.
Hollow Mill Cutters, or inside-out end mills, are specialized for jobs requiring material removal from the inside of a workpiece, such as pipes. These cutters are particularly useful on turret lathes and screw machine devices and offer an efficient alternative to traditional turning tools.
Ball End Mills, known for their rounded ends, are essential for reducing stress concentrations during milling. These versatile tools are perfect for creating three-dimensional contours and smooth finishes, adapting seamlessly to various applications.
Specialized gear cutting is facilitated by Involute Gear Cutters, which are specifically designed to handle a set pressure angle, commonly 14.5°. These cutters come in different types for gears with varying numbers of teeth, enhancing their versatility in gear creation.
Face Mill Cutters, with their circumference cutting teeth, are pivotal in modern milling processes. Advances in technology have significantly improved their precision, allowing for more effective handling of various material surfaces.
Woodruff Cutters are tailored for cutting keyways for woodruff keys in machined parts. Available in different configurations, these cutters ensure precise and efficient keyway cutting, crucial for various machining tasks.
The Thread Mill Cutter, resembling an end mill, is used for precise thread milling. This versatile tool employs a helical movement to carve accurate threads, making it a preferred choice for detailed threading operations.
A Fly Cutter is noted for its capability to achieve fine surface finishes at a slower speed. This tool is particularly suitable for smaller projects where the quality of the finish is of utmost importance.
Side and Face Cutters are essential for creating long, deep, and open slots in workpieces. Available in various sizes and equipped with teeth on their peripheral and side areas, these tools are especially useful in gang cutting operations.
The Hobbing Tool, primarily used to cut gears, sprockets, and splines, utilizes incremental cuts to meticulously shape the workpiece. This tool is a cost-effective and precise method for producing components such as spur gears and helical gears.
Lastly, the Dovetail Cutter is vital for creating strong, interlocking joints in both wood and metal. Capable of cutting dovetail slots at precise angles, this cutter is fundamental in many CNC milling operations, reflecting the continued evolution of machining technology.
Issues such as plastic warping and flow marks can also arise in CNC machining, especially when dealing with injection molding components. These defects can affect the quality and fit of machined parts, making it essential to consider factors like material properties and cooling rates. Additionally, understanding the role of the parting line in injection molding is crucial for ensuring precise and seamless assembly of components.
Each of these tools plays a critical role in CNC machining, offering specific benefits that enhance efficiency and precision across diverse milling tasks. This specialization ensures that CNC machine tools can meet the rigorous demands of modern manufacturing, making them indispensable in industrial applications.
